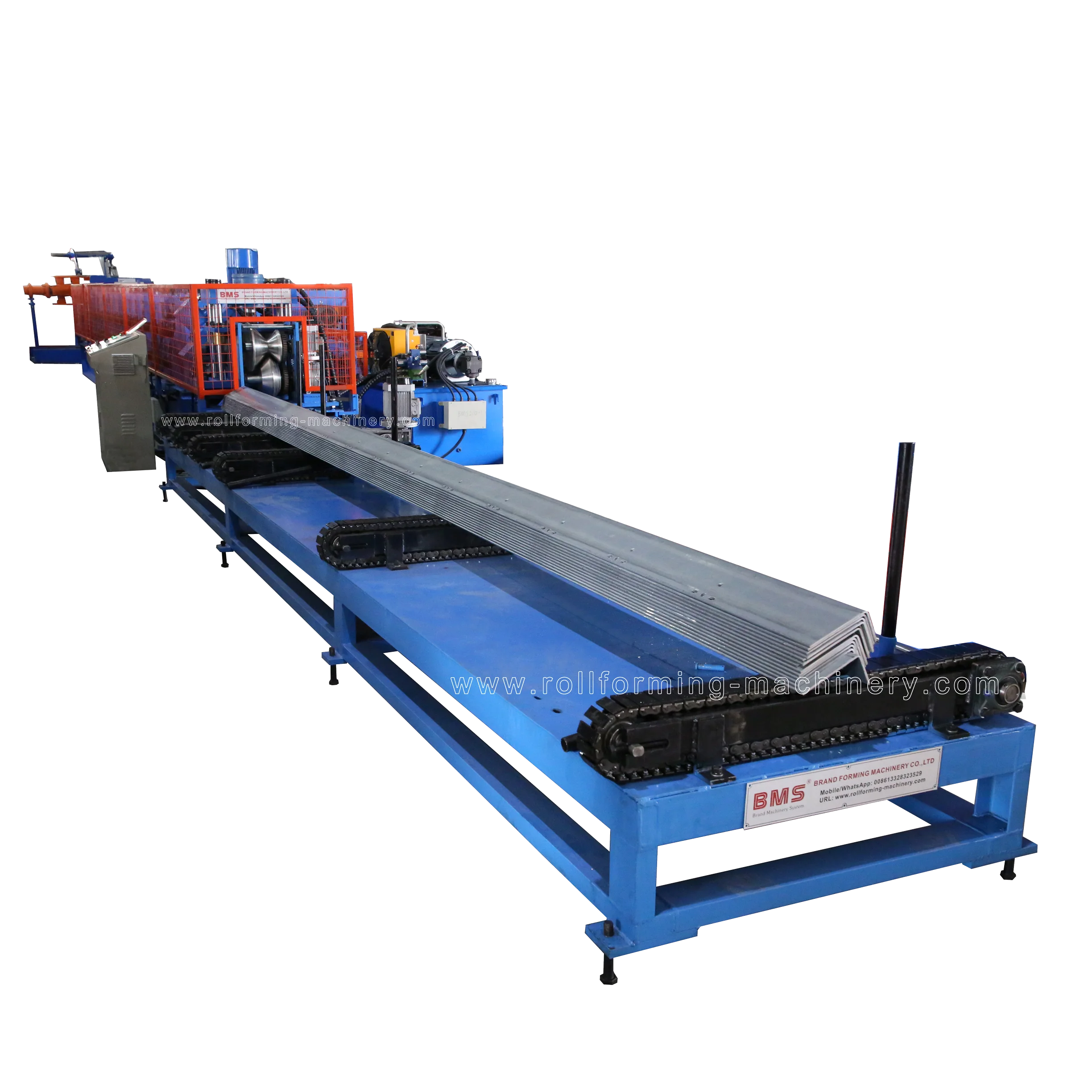

High Speed L Type Angle Steel Keel Bar Shape Roll Form Machine

High Speed L Type Angle Steel Keel Bar Shape Roll Form Machine

Overview
Related Products

Product Description

Product Name		Angle L Profile Roll Forming Machine
Material	Applicable material	GI(Galvanized Steel Sheet)/PPGI/PPGL
	Material thickness	1-6mm
	With yield strength	235-345-550Mpa Yield Strength
Machine	Base frame	H400/H450 type steel
	Roller material	CR12 -GCr15-40-45# steel with hard chrome coating
	Hardness	Heat treatment to HRC52-58 degree
	Roller station	18-20-22steps to form
	Shaft diameter	80mm/ 75mm/ 100mm
	Machine size	1000020002000mm
	Machine weight	10-15-25tons
	Machine color	2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard
	Working speed	15m/min
Cutter	Hardness	Heat treatment to HRC58-62 degree
	Cutting tolerance	≤±1mm
	Material	Cr12MoV(= Z200C12 with at least one million times of cutting life)
	Operate	By PLC
Power	Driving way	Gear/Sprocket transmission,
	Main motor	15.5KW-18.5KW-22KW-30KW
	Pump motor for cutter	5.5kw-7.5KW-11KW
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch screen	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
	Cut-to-length tolerance	≤±1mm
	Control voltage	24V
Automatic Stacker and Printer		Options

Profile Drawing

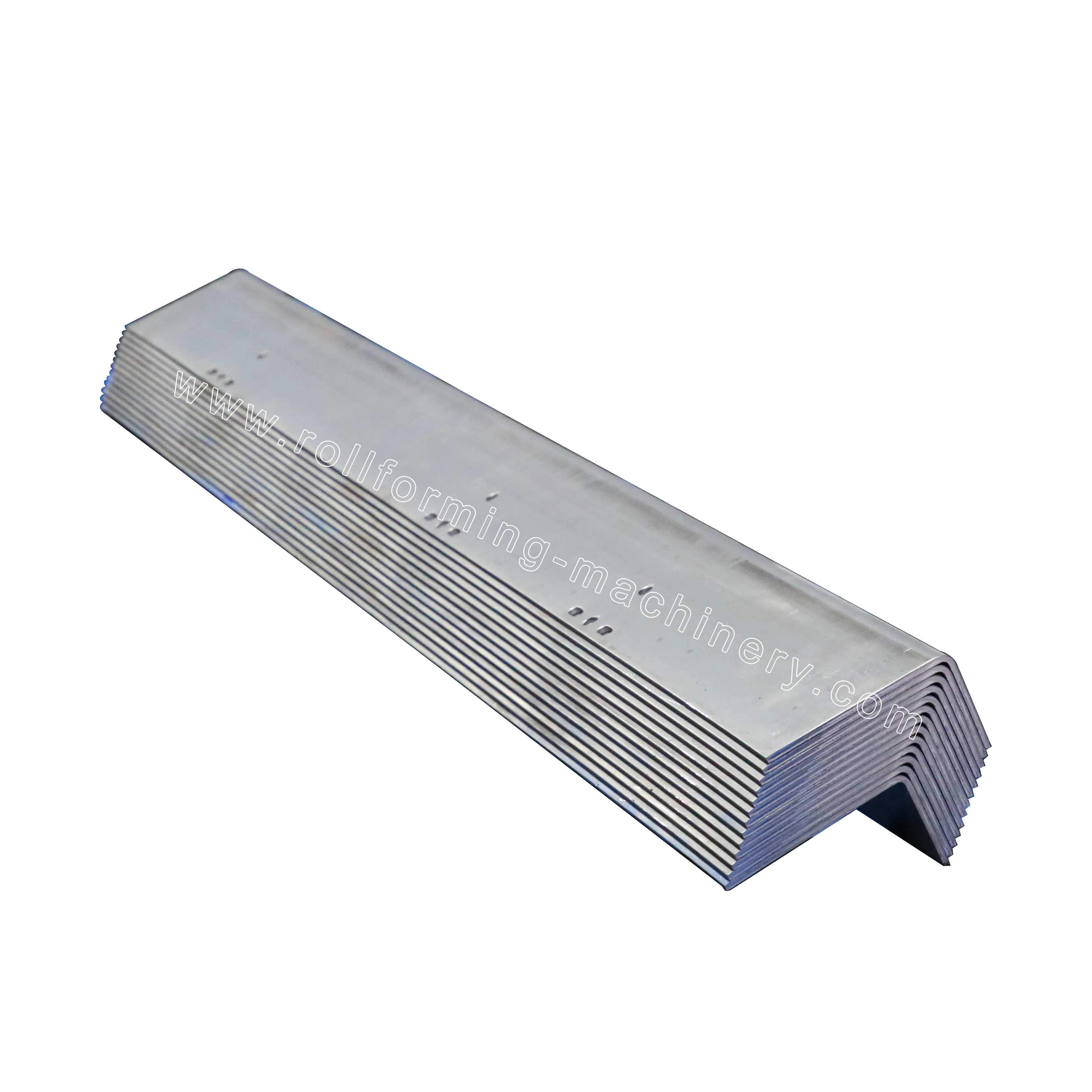

Product Show

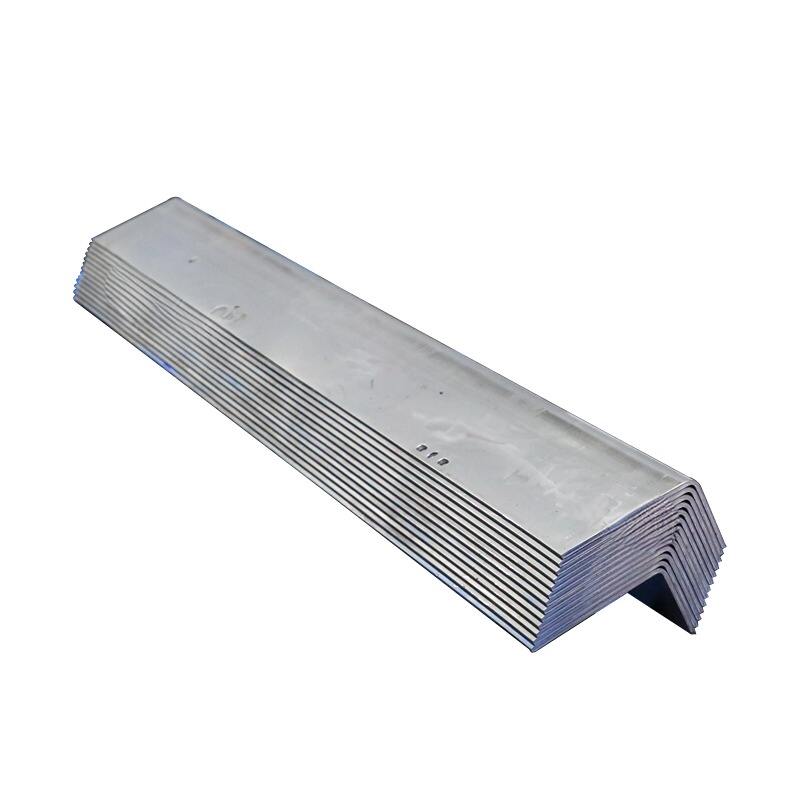

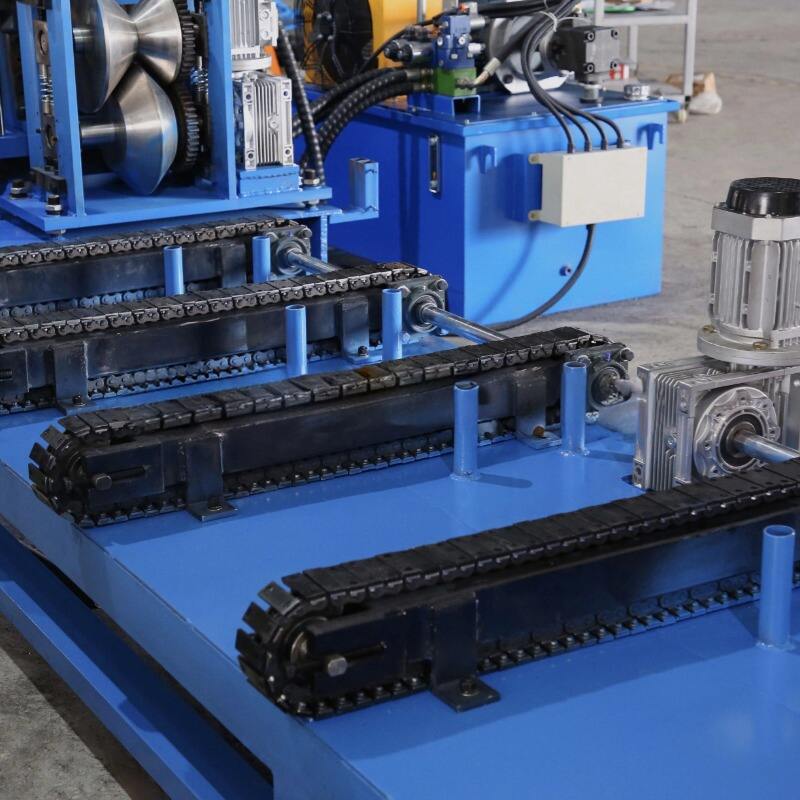

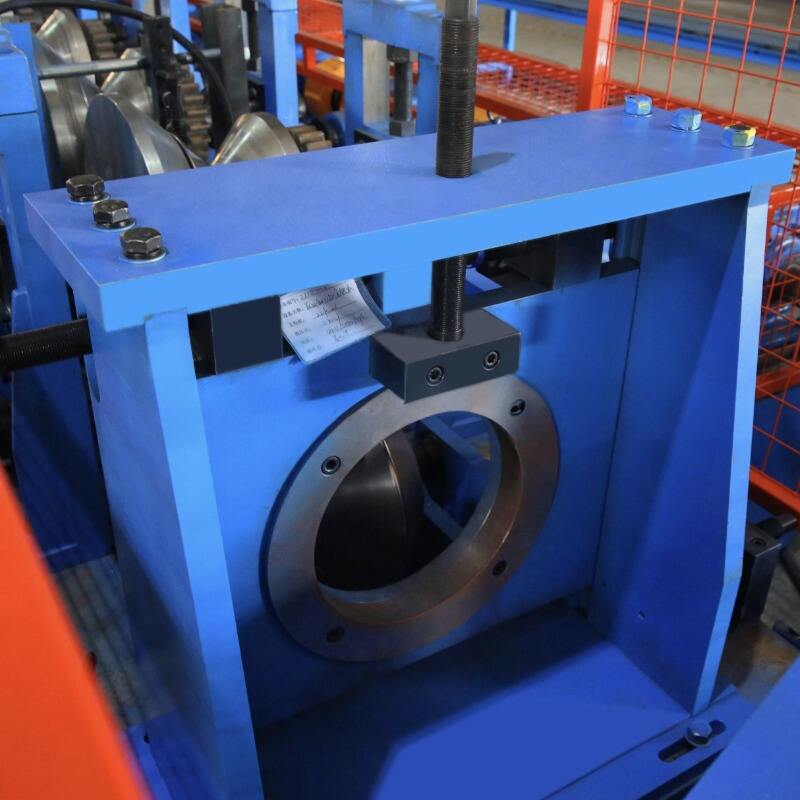

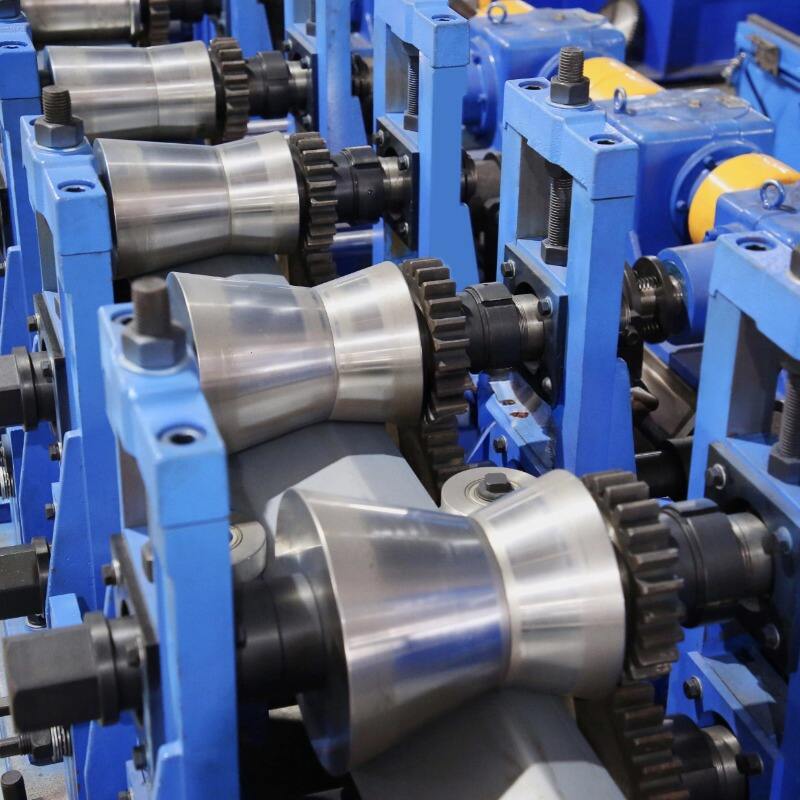

未命名(21) (4)(18100ccc6b).jpg 未命名(21) (5)(05ada74255).jpg 未命名(21) (3)(447e71be82).jpg 未命名(21) (2)(f3daa04a67).jpg 未命名(21)(affa545953).jpg 未命名(21) (1)(aaa4056472).jpg
