Product Description

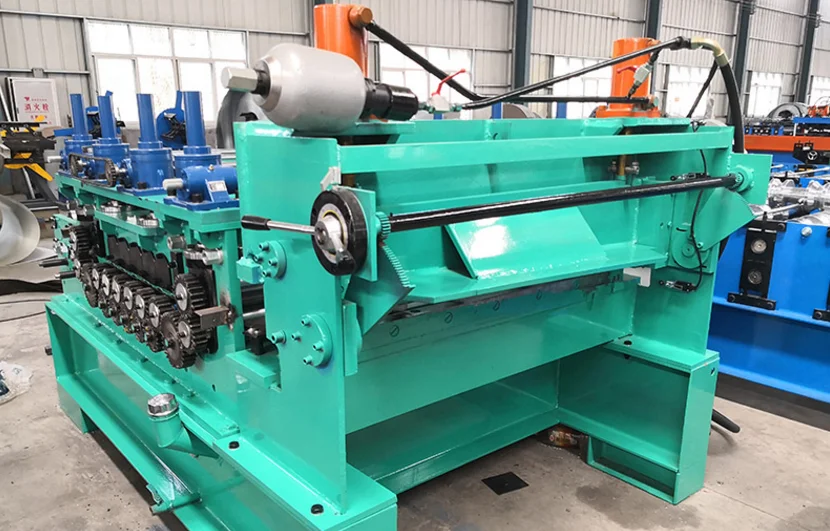

AUTO Cut To Length Line Machine For 0.5-3.0mm*1600mm

AUTO Cut To Length Line Machine(Taiwan Type) factory

The Feature Of The Machine

1.Automatically Forming And Cutting At Any Length With Pre-Set Quantity

2.Signal Feedback From Encoder Showing Length Of Product

3.The Control Panel Enables To Count A Total Length Of Finished Coil

4.Rollers Are Alloy Steel Fabricated By CNC Precision Machine And Hard Chromium Plated

5.Cutting Die ls SKD11 Steel Fabricated By CNC Machine, Heat Treatment Get 55-60 HRC

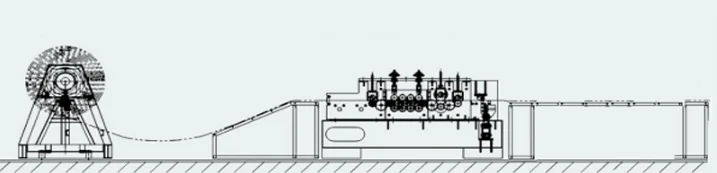

Work Follow

Decoiler→Feeding Guide Device→Leveling Device→Slitting Device→Hydraulic Post Cutting→Run Out Table

AUTO Cut To Length Line Machine(Taiwan Type) factory
Machine Components

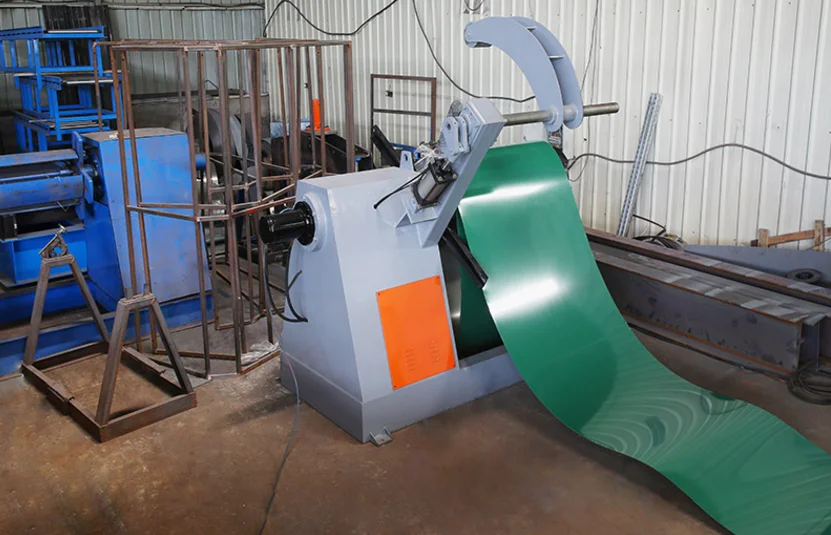

1)Hydraulic Decoiler : one set
Manual control steel coil inner bore shrinkage and stop
Max. feeding width: 1600mm, coil ID range 508mm±30mm
Capacity: Max. 7Ton

AUTO Cut To Length Line Machine(Taiwan Type) supplier

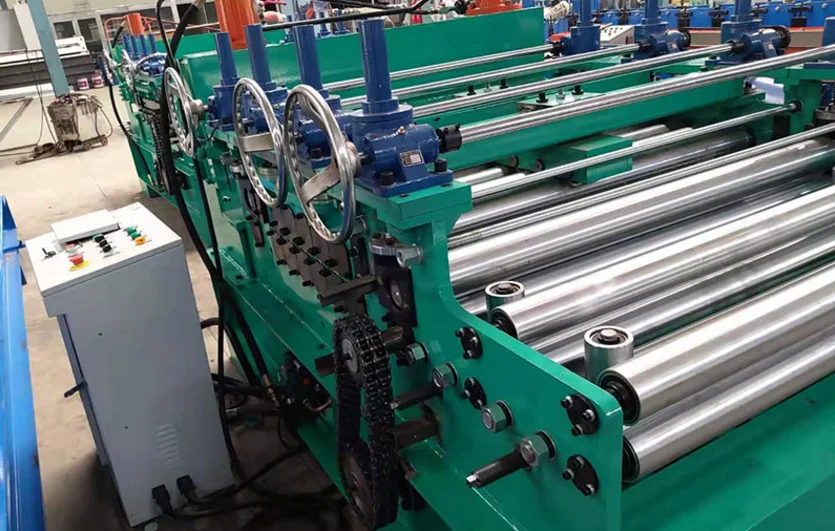

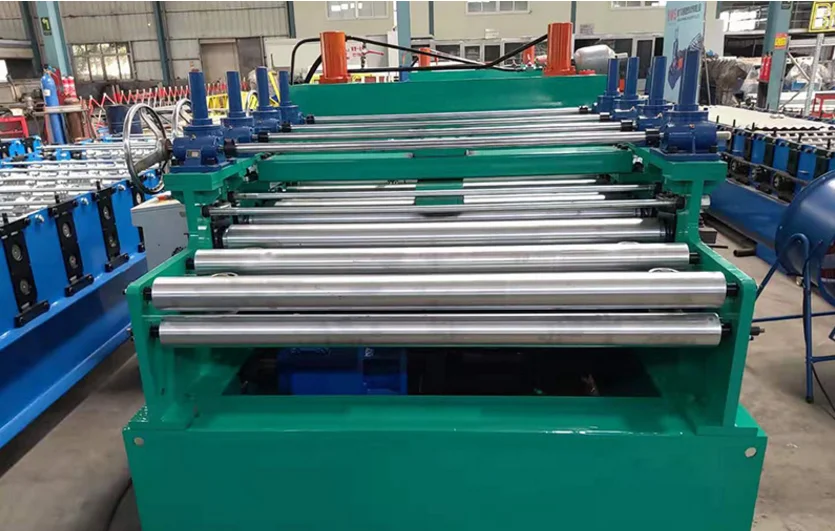

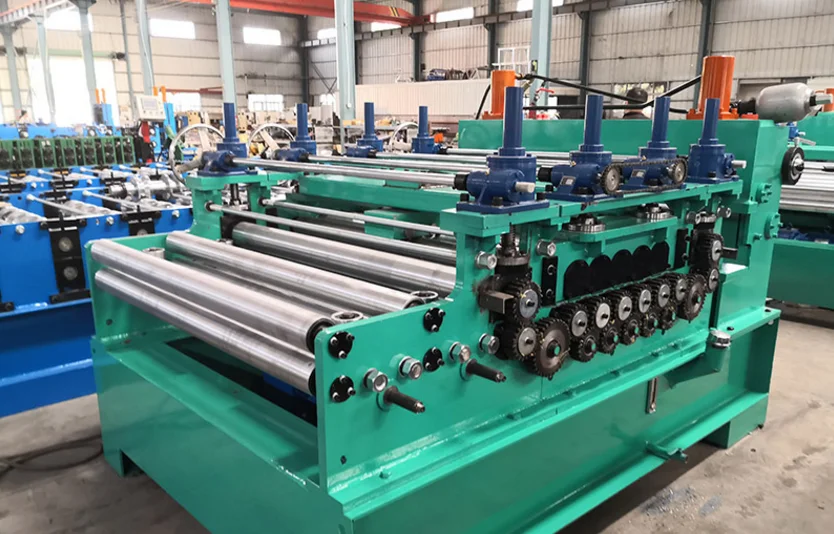

2)Main Machine

Up five down six totally eleven shafts leveling device.
Body frame made from H450 type steel by welding.
Side wall thickness:Q235 t30mm
Shafts manufactured from GCr15 steel,Diameter=φ105mm, Frequency Heat Treatment

AUTO Cut To Length Line Machine(Taiwan Type) manufacture

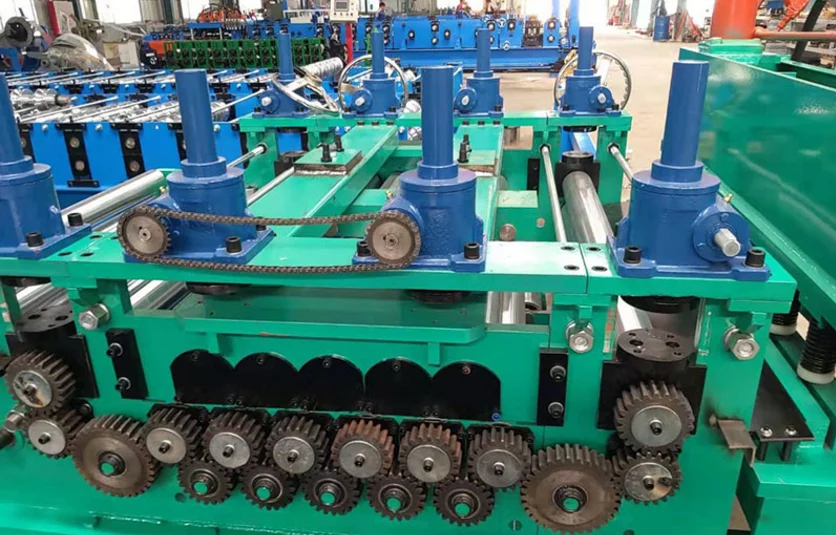

Gear Drive
AUTO Cut To Length Line Machine(Taiwan Type) supplier
AUTO Cut To Length Line Machine(Taiwan Type) supplier
With Leveling Function
With Shearing Function
Line speed:25m/minute
Main Machine Motor:11KW+3.7KW
With PLC Control System
AUTO Cut To Length Line Machine(Taiwan Type) factory

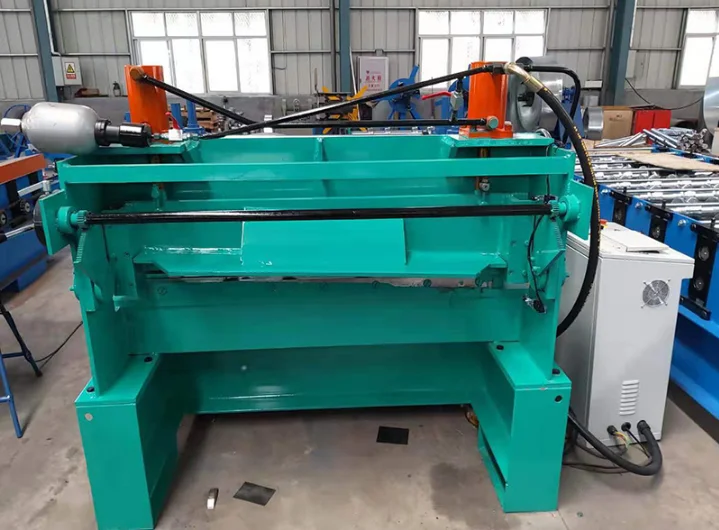

3)Post Hydraulic Cutting Device
Post to cut,stop to cutting,Two pieces type of cutting blade design,no blanking
Hydraulic motor:3.7KW,Cutting Pressure:0-16Mpa
Cutting tool material: Cr12MoV(=SKD11 with at least one million times of cutting life),heat treatment to HRC
58-62 degree
The cutting power is provided by the main engine hydraulic station.
AUTO Cut To Length Line Machine(Taiwan Type) factory
4) Exit Rack
Un-powered,one unit
AUTO Cut To Length Line Machine(Taiwan Type) supplier

After-sale service


1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade



1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia,Trinidad,Israel,Saudi Arabia,etc.

Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
AUTO Cut To Length Line Machine(Taiwan Type) factory

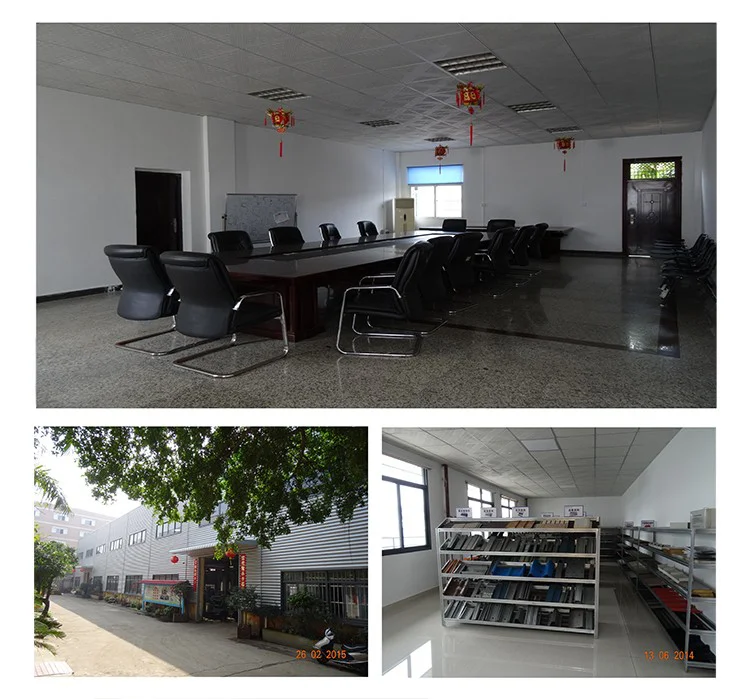

Company show

AUTO Cut To Length Line Machine(Taiwan Type) supplier

Factory show

AUTO Cut To Length Line Machine(Taiwan Type) factory
