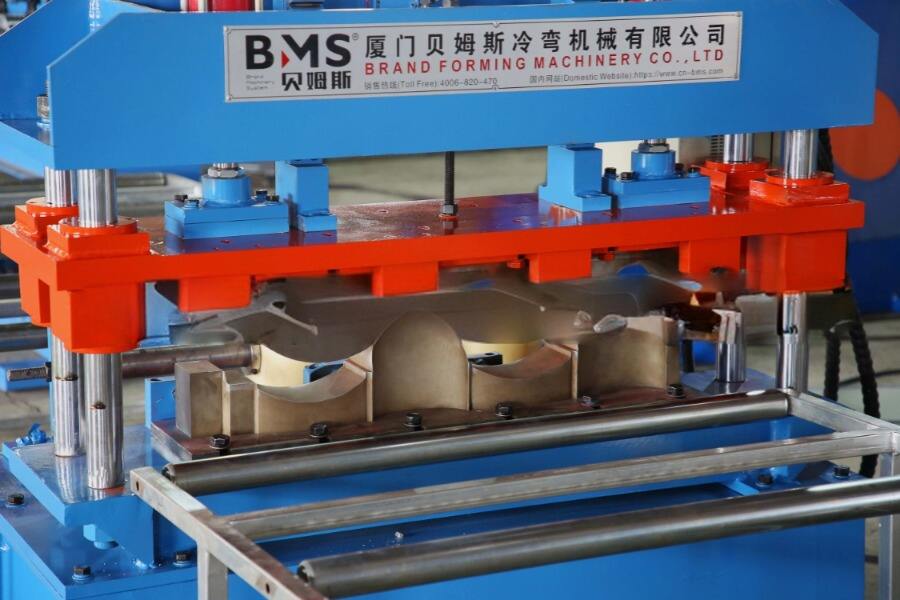

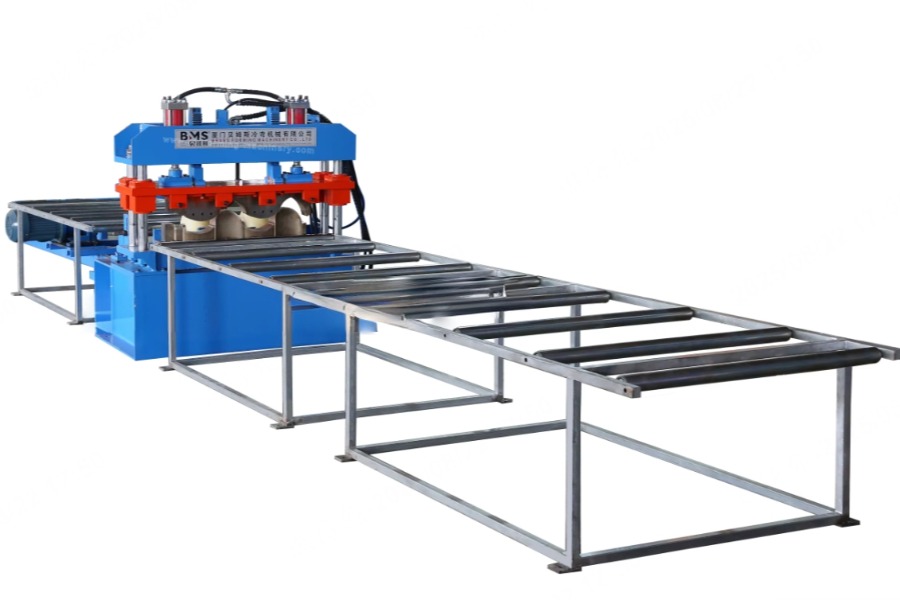

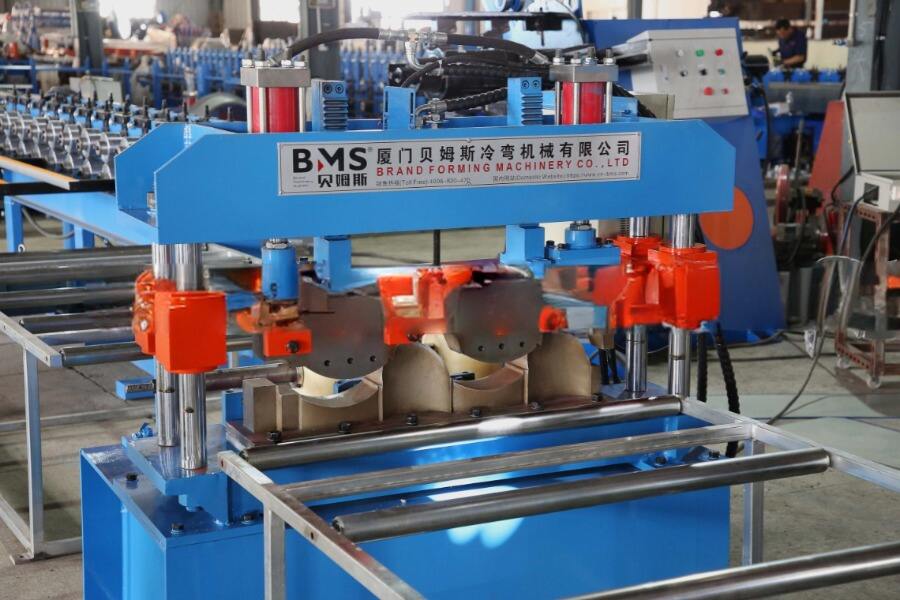

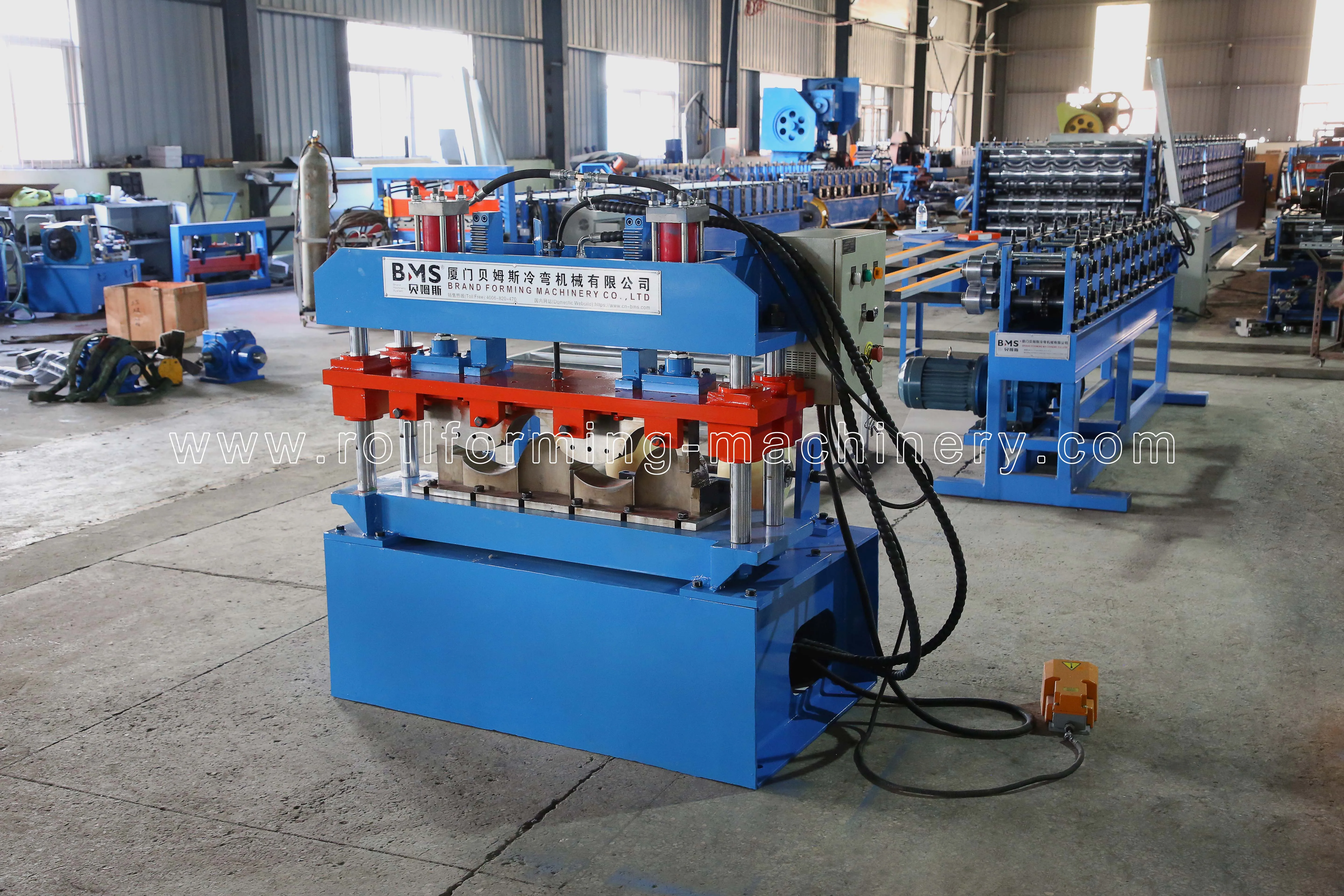

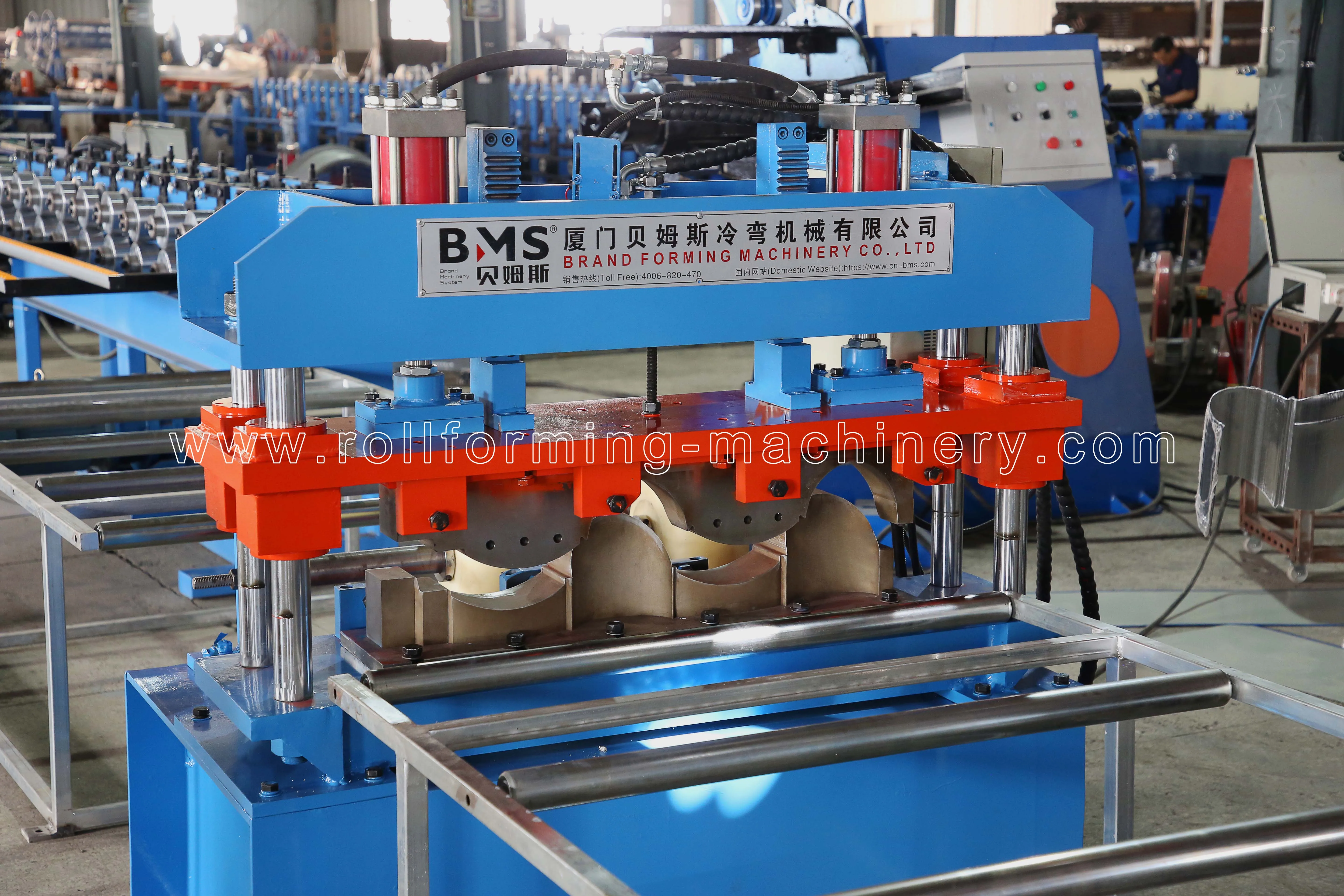

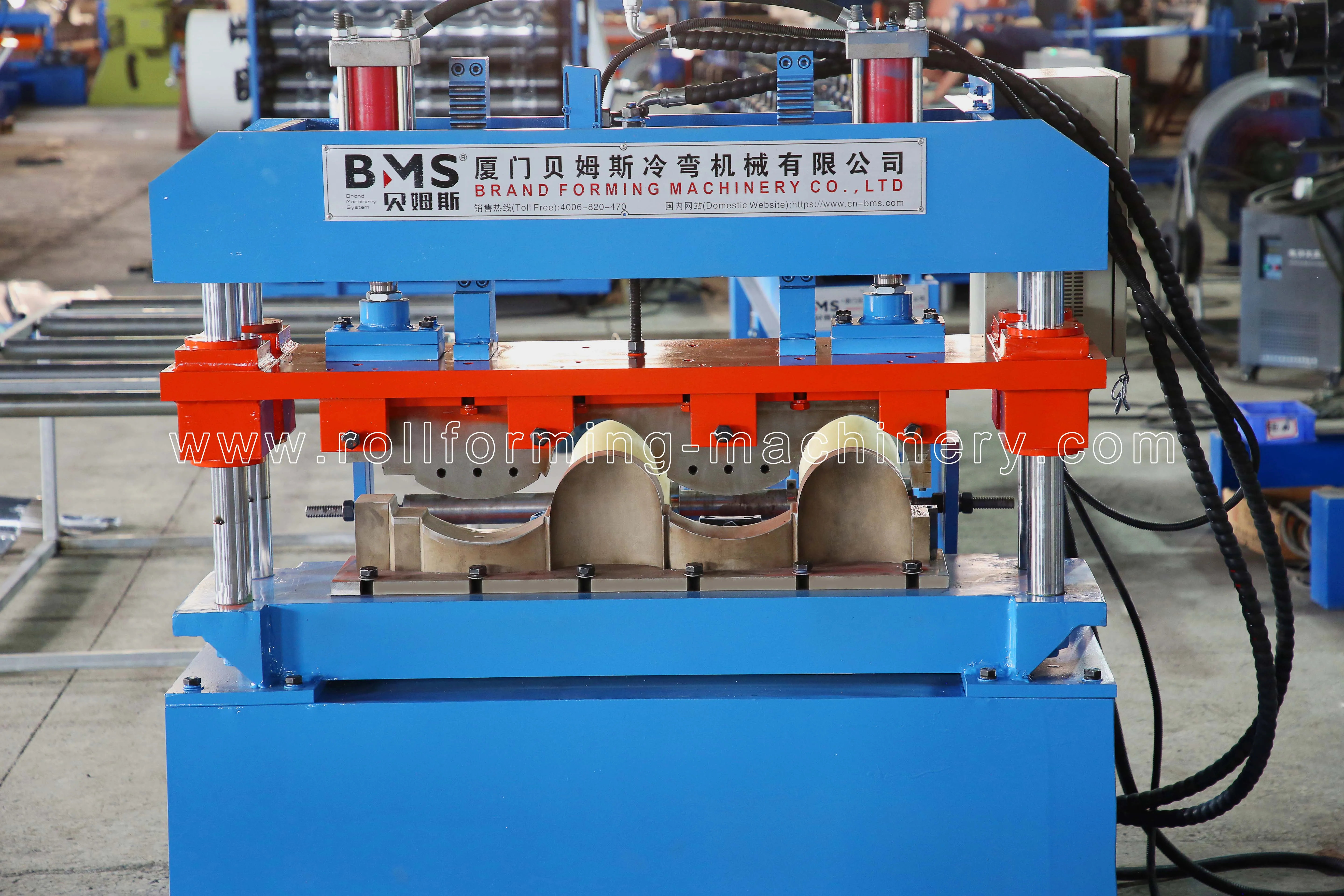

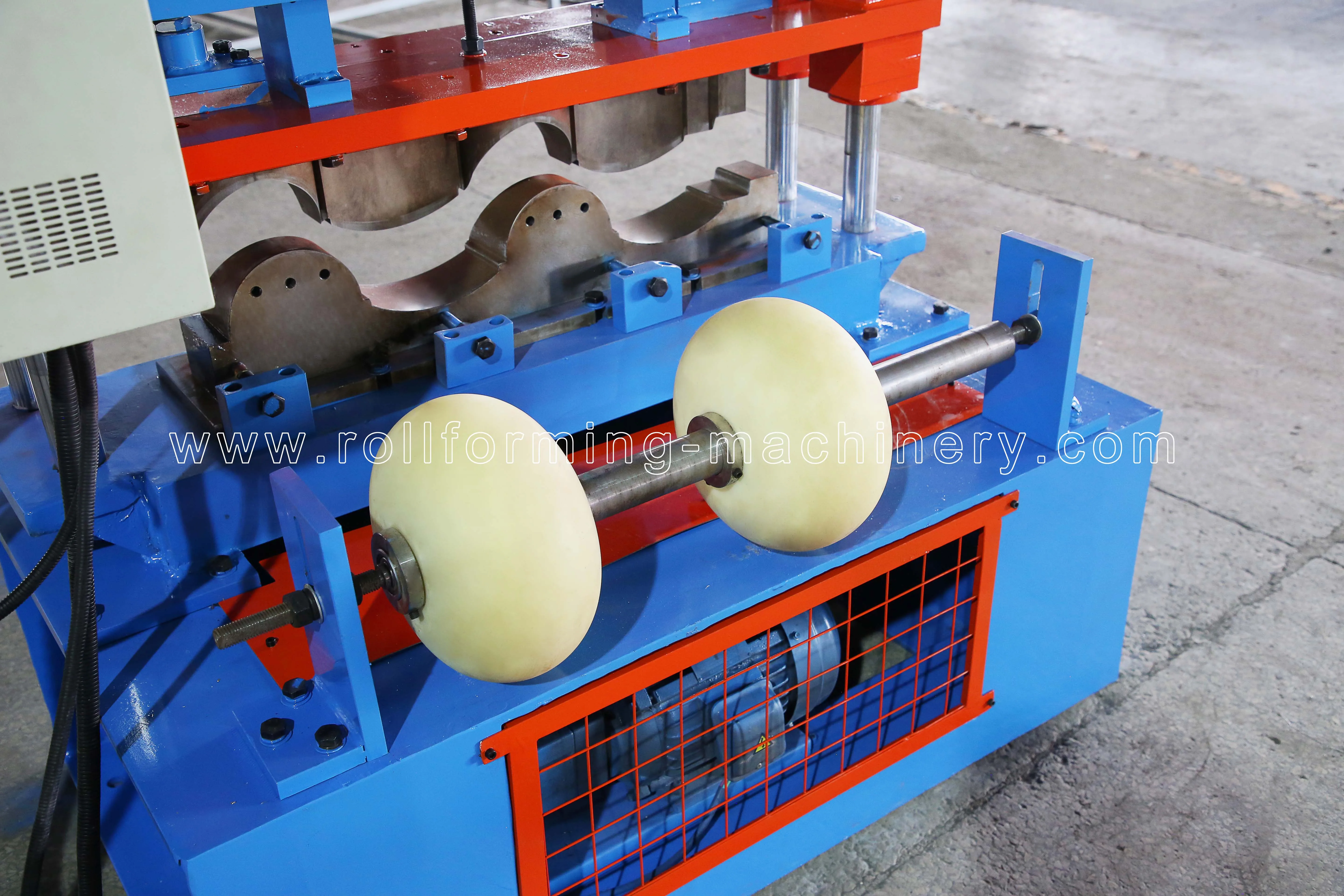

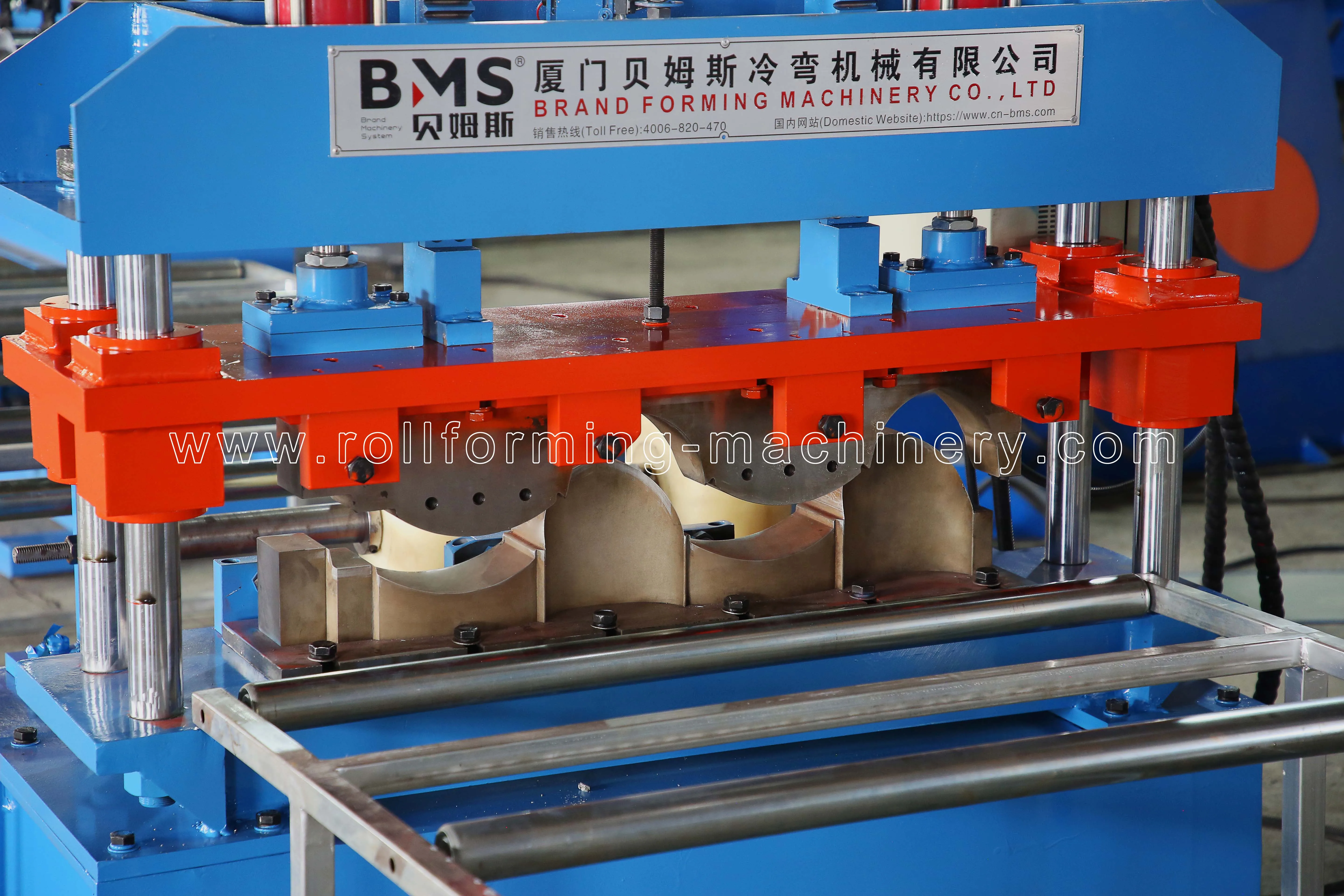

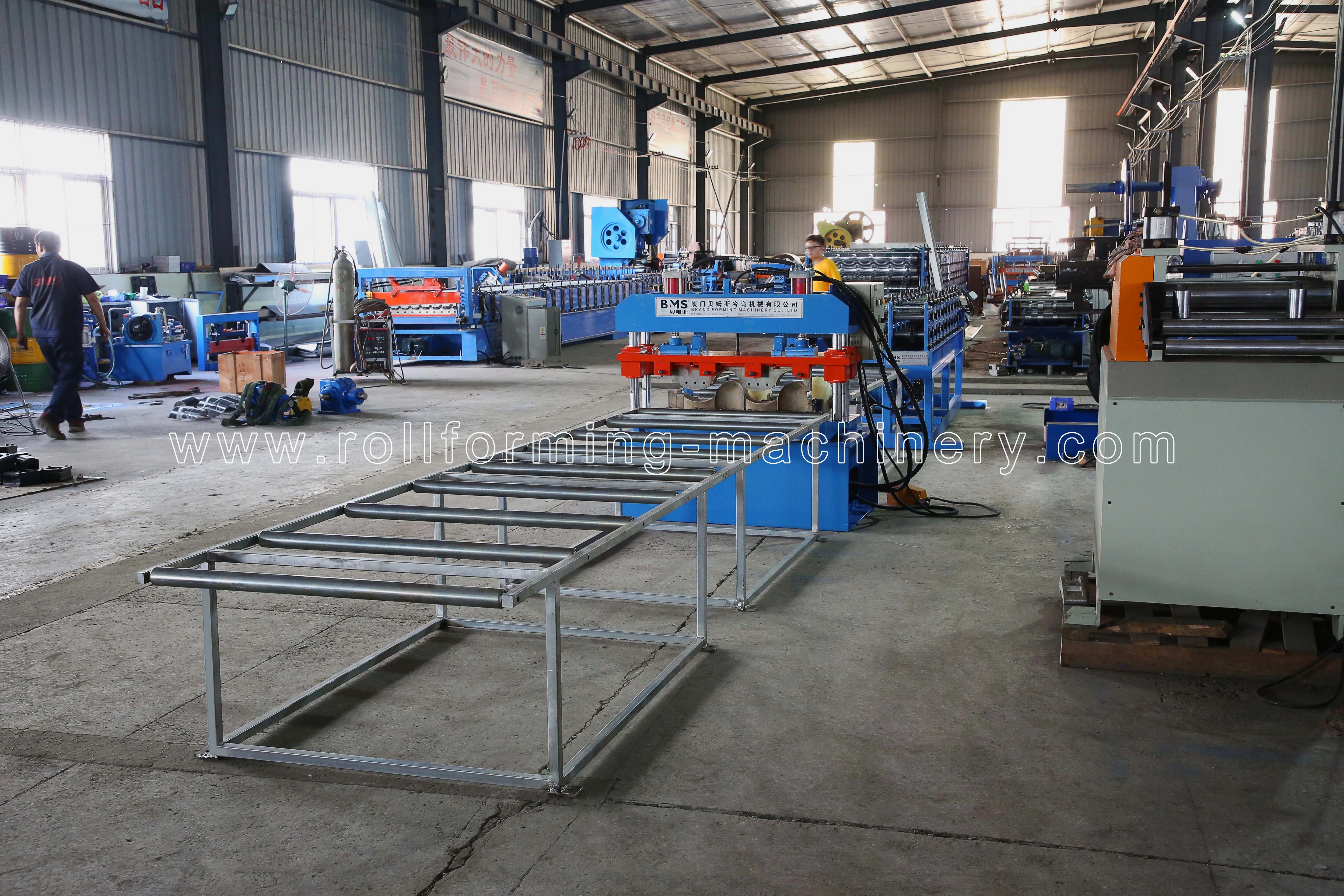

| Product Name | Metal Roofing Sheet Cutting Machine (Designed For Glazed Tile | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI ,Stainless steel |
| Material thickness | 0.3-0.8mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Leveling device | levelling shaft | up three down four |
| Shaft diameter | 80/90/100/110 | |
| shaft material | 45# steel/Cr12 | |
| Main Machine | Shaft diameter | 65 |
| Machine size | 6200*1160*1860(mm) | |
| Machine weight | 7000 | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard | |
| Hydraulic motor | 3.75 kw | |
| operate | By PLC | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph --should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/DELTA (Taiwan brand) |
| Touch screen | WEINVIEW(Taiwan brand) | |
| Encoder | KOYO (Japan brand) or OMRON (Japan brand | |
| Cut-to-length tolerance | ≤±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |
