Roof 8inch half Gutter Roll Made Manufacture Forming Machine In China

Product Description

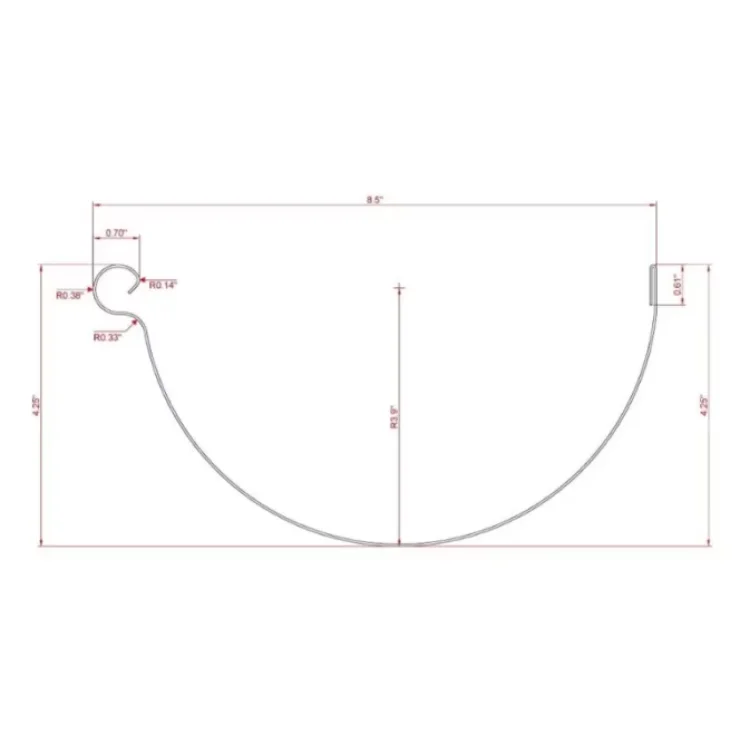

Product Name		8 Inch Half Gutter Roll Forming Machine
Material	Applicable material	PPGI
	Material thickness	Steel:0.3-0.6 mm
	With yield strength	235-345Mpa Yield Strength
Machine	Base frame	H450 type steel
	Roller material	45 # steel with hard chrome coating
	Hardness	Heat treatment to HRC52-58 degree
	Roller station	10 to form
	Shaft diameter	80mm/ 75mm/65mm
	Machine size	length about 3.2 meters(10.7ft) width about 1.2 meters(3 ft) height about 1 meters (3.4ft)
	Machine weight	About 3000KGS 6613 Ib
	Machine color	2.BlueRAL5015+ orange (RAL2004, as per the seller factorys color standard
	Working speed	30m/min
Cutter	Hardness	Heat treatment to HRC58-62 degree
	Cutting tolerance	Â±1mm
	Material	Cr12MoV(= Z200C12 with at least one million times of cutting life)
	Operate	By PLC
Power	Driving way	Gear/Sprocket transmission,
	Main motor	3/4KW
	Pump motor for cutter	kw
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch screen	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
	Cut-to-length tolerance	Â±1mm
	Control voltage	24V
Automatic Stacker and Printer		Options
