Metal C Profile Purlins Z Auto C/z Purlin Steel Formig Roll Forming Machine

Overview
Related Products

Product Description

Product Name		CZ Purlin Roll Forming Machine (Quick-Change From C to Z ,Automatic Changeover For C-C or Z-Z)
Material	Applicable material	GI(Galvanized Steel Sheet)
	Material thickness	Steel:1.0-3.0mm
	With yield strength	235-345-550Mpa Yield Strength
Machine	Base frame	H450 type steel
	Roller material	Cr12 steel with hard chrome coating
	Hardness	Heat treatment to HRC52-58 degree
	Roller station	20 to form
	Shaft diameter	80mm/ 75mm/65mm
	Machine size	1100018001800mm
	Machine weight	11 tons
	Machine color	2.BlueRAL5015+ orange (RAL2004, as per the seller factorys color standard
	Working speed	30m/min
Cutter	Hardness	Heat treatment to HRC58-62 degree
	Cutting tolerance	±1mm
	Material	Cr12MoV(= Z200C12 with at least one million times of cutting life)
	Operate	By PLC
Power	Driving way	Gear/Sprocket transmission,
	Main motor	22KW
	Pump motor for cutter	7.5kw
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch screen	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
	Cut-to-length tolerance	±1mm
	Control voltage	24V
Automatic Stacker and Printer		Options

Product Show

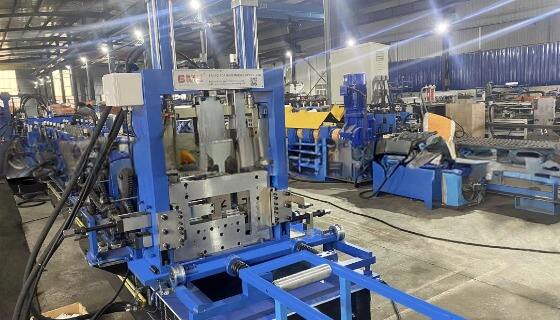

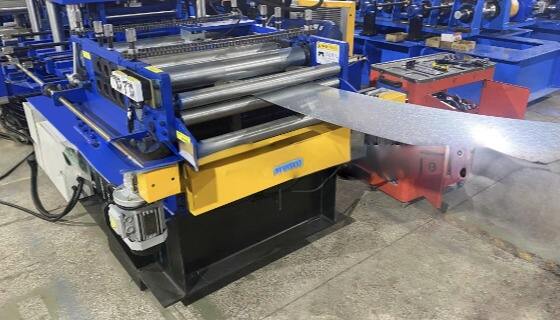

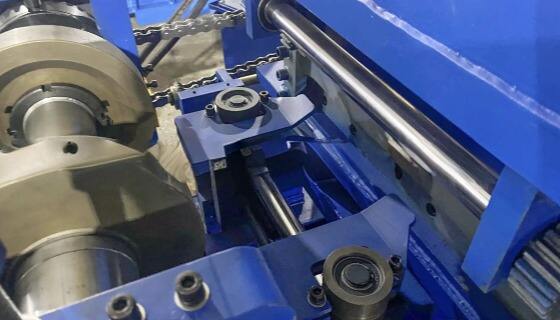

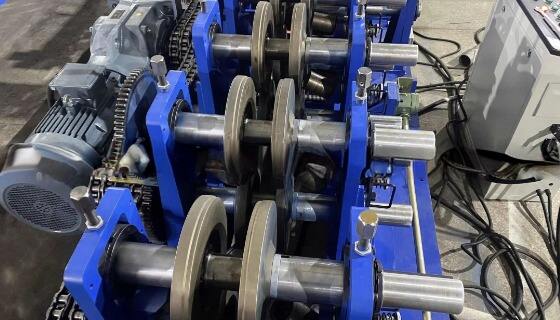

未命名(21) (5)(c8524c8b4c).jpg 未命名(21) (4)(171ced2953).jpg 未命名(21) (1)(178a2b1463).jpg 未命名(21)(e57448a0d5).jpg 未命名(21) (3)(0805a01685).jpg 未命名(21) (2)(10edc65cf5).jpg
